EZ-Flats® Essential Mail Sorting Equipment

Affordable manifest mailing system for First Class Flats and more!

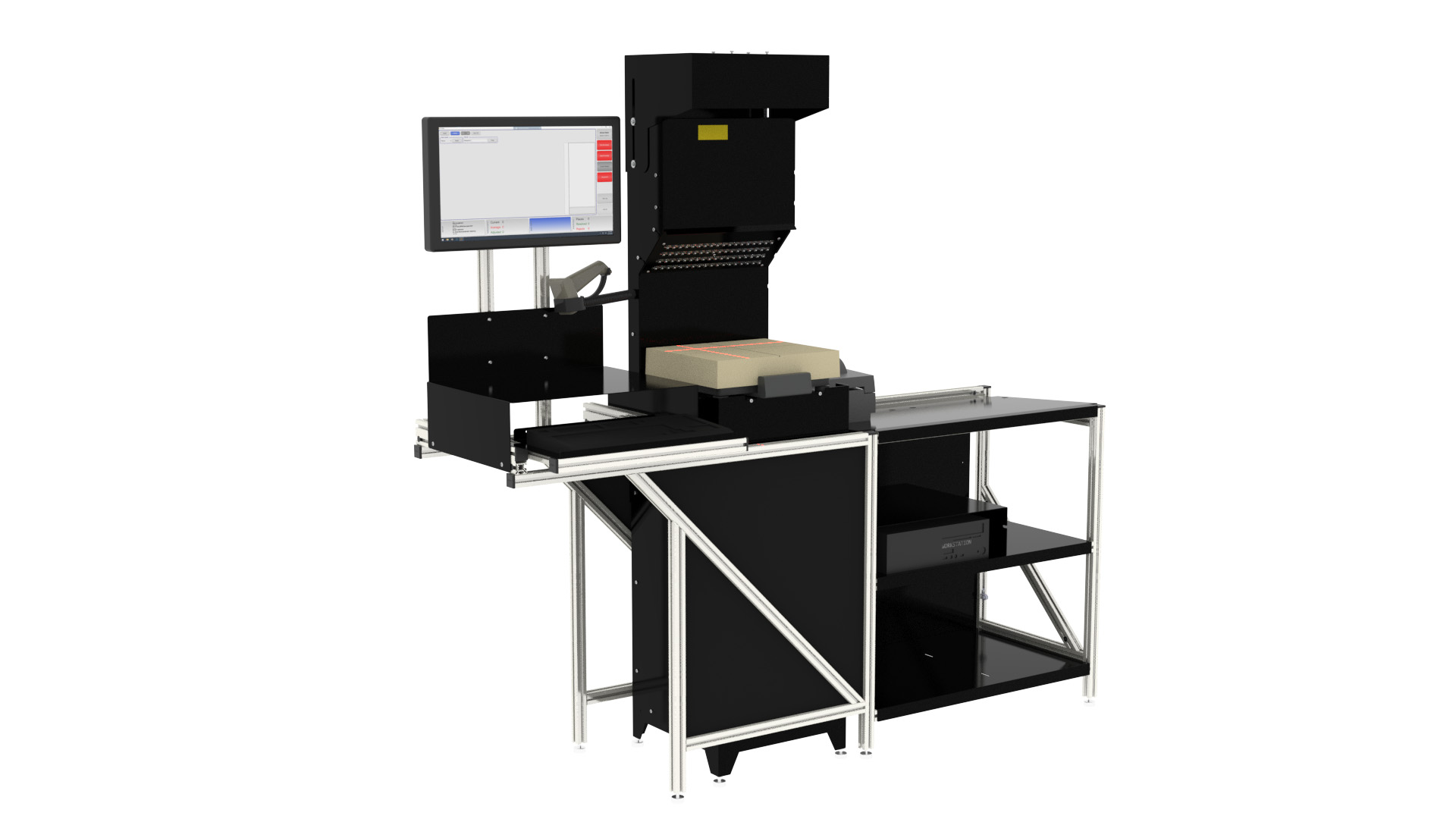

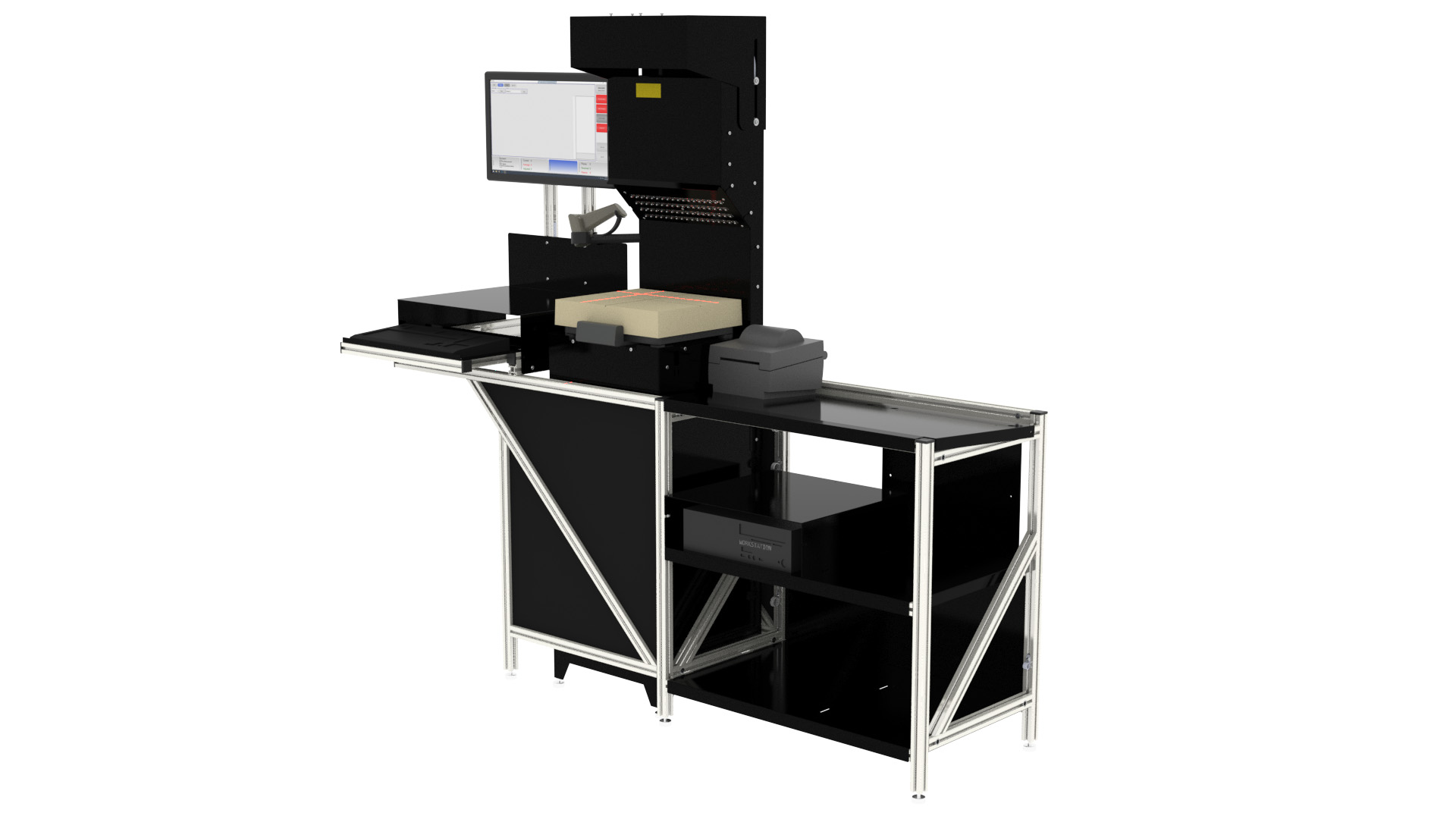

EZ Flats Essential
Overview

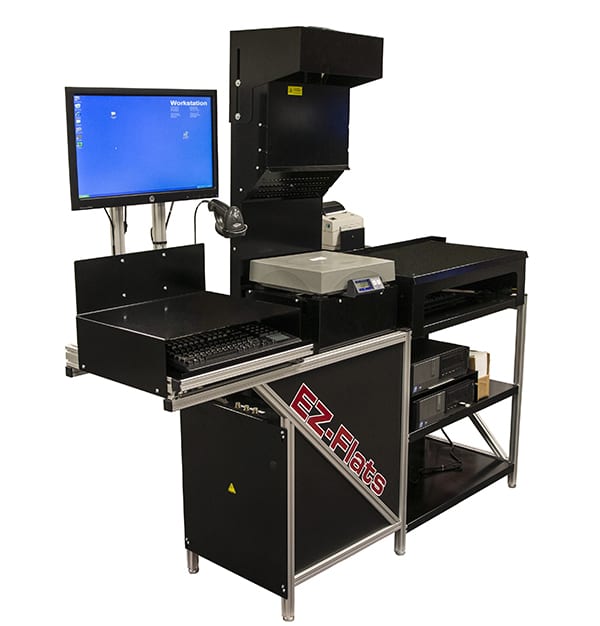

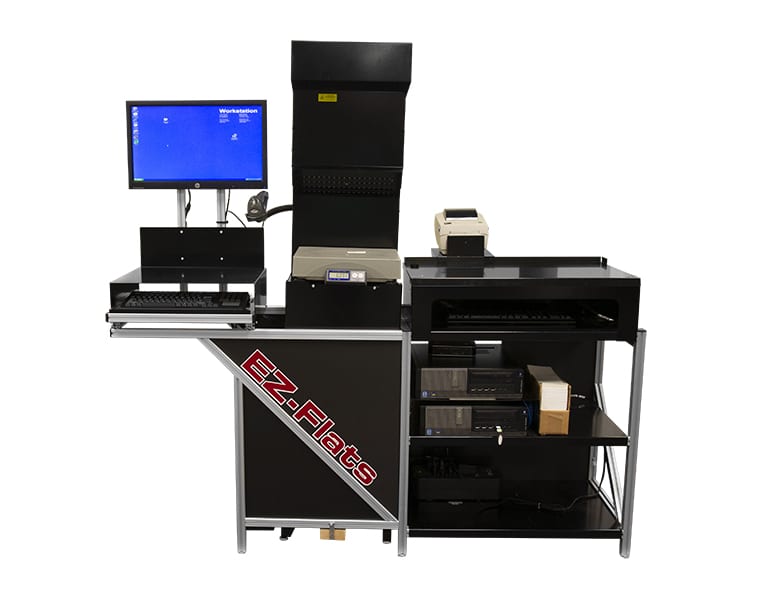

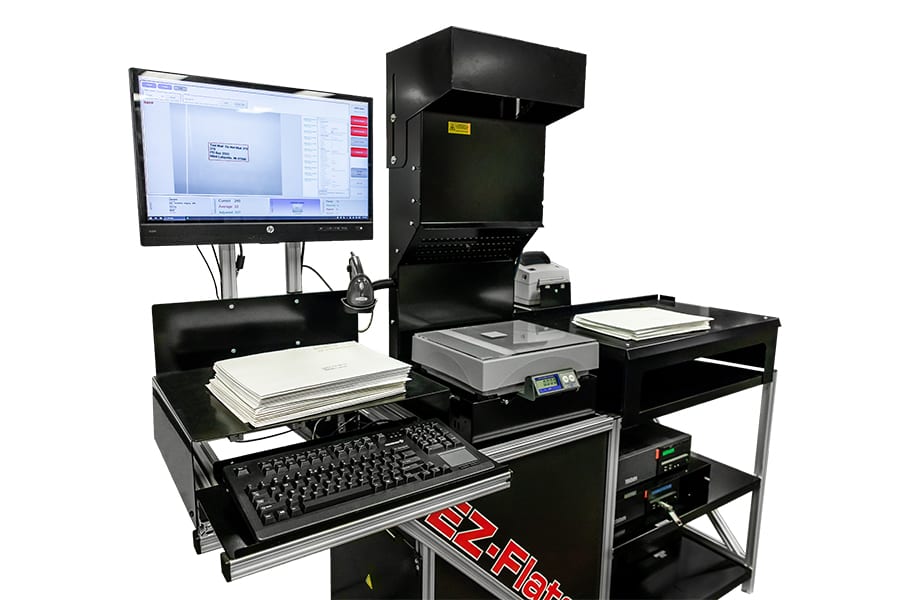

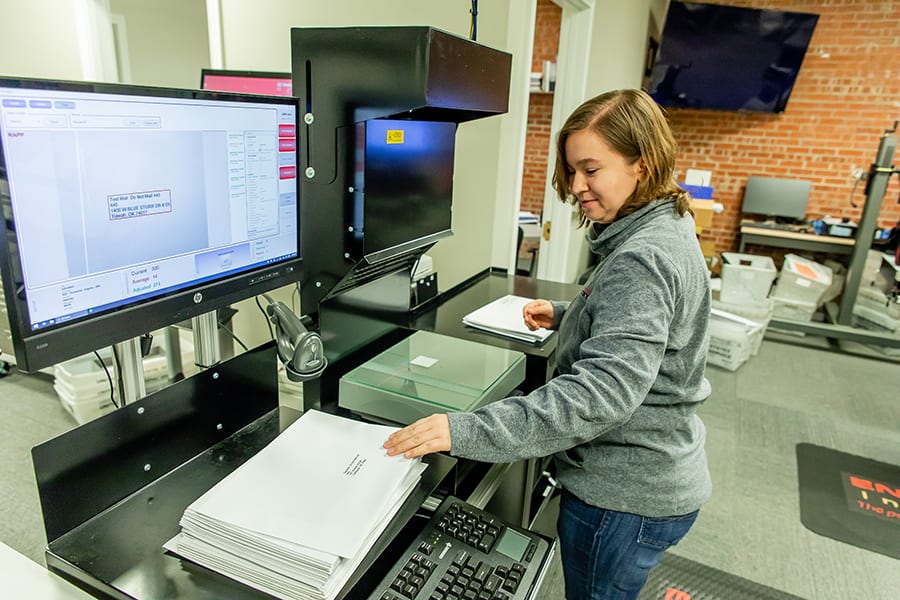

The EZ-Flats® Essential is the introductory model for the EZ-Flats® system for mailers with lower flats volume to get USPS discounts hastily with a lower initial investment while eliminating the need for multiple passes. This absolutely essential solution identifies the address on the mail piece through the OCR and the operator manually applies the barcoded label. The Essential features best in class OCR technology and works with Parascript™ and/or RAF Platinum™.

EZ-Flats® Essential can bust out 500-2000 flats daily, with an hourly rate of 700-1000 flats with 1-2 operators. Eii makes it easy to scale by allowing multiple server-based EZ-Flats® machines to work together, and, of course, you can easily upgrade to Enhanced, Premium, or Pro models should your volume increase.

Features

Cost Effective

Low entry cost and quick ROI.

Highest Profit Potential

Flats are automatically directed to the maximum discount.

Simplicity

System installs easily and operators are up to speed in 15 minutes.

Specifications

Throughput (pph) -
700 - 1,000
Piece Type -
Boxes, Polybags, Padded Mailers, Bubble Mailers, Flats
Piece Height (in) -
0.125 - 2
Piece Length (in) -
6 - 15
Piece Width (in) -
5 - 10
Min Weight -
1 oz.
Max Weight -
50 lbs.

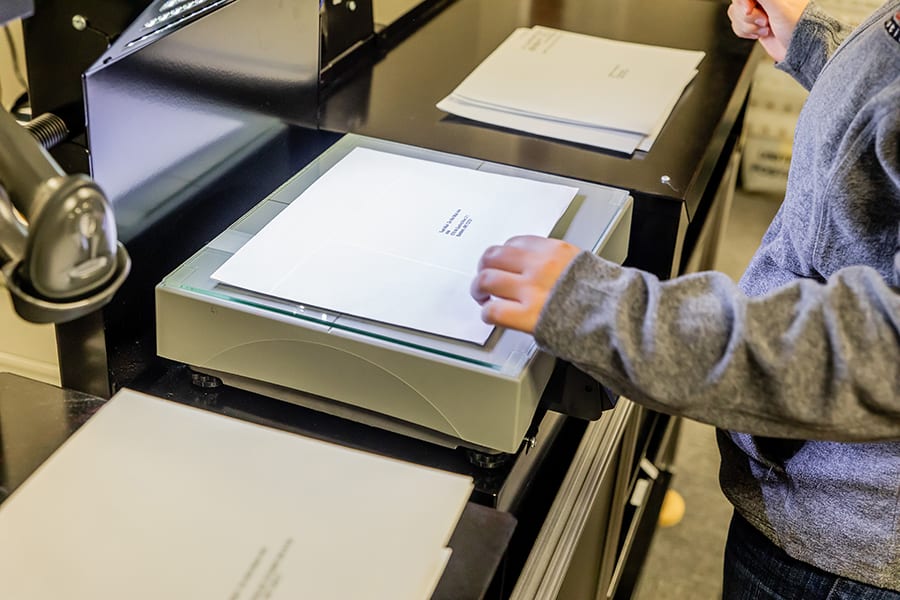

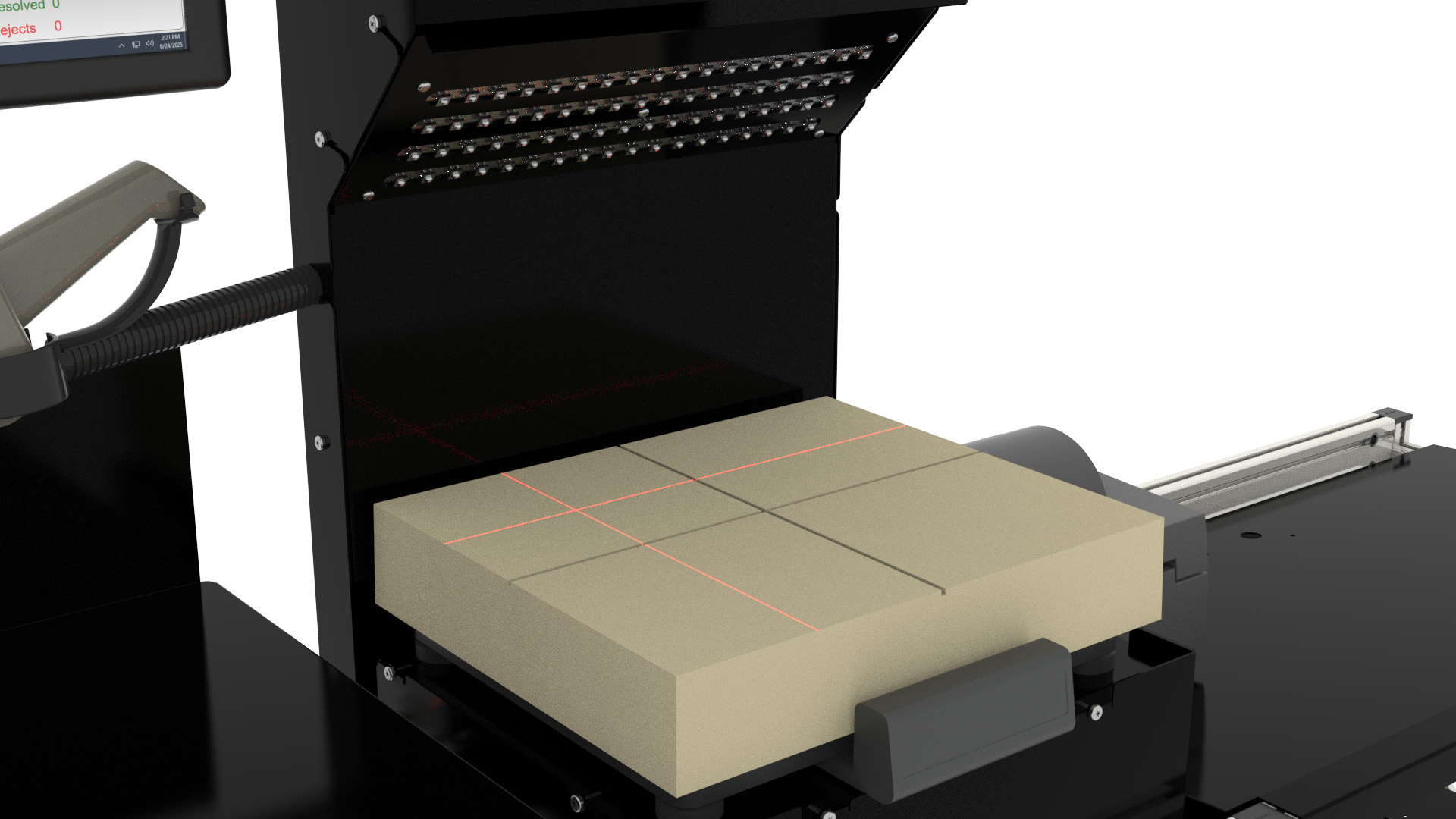

Scale -
Mettler Toledo BC-30
Barcode -
1D and 2D
Scanner -
Symbol LS2208 1D Scanner
OCR -
Yes
Label Size (in) -
4 x 1.5

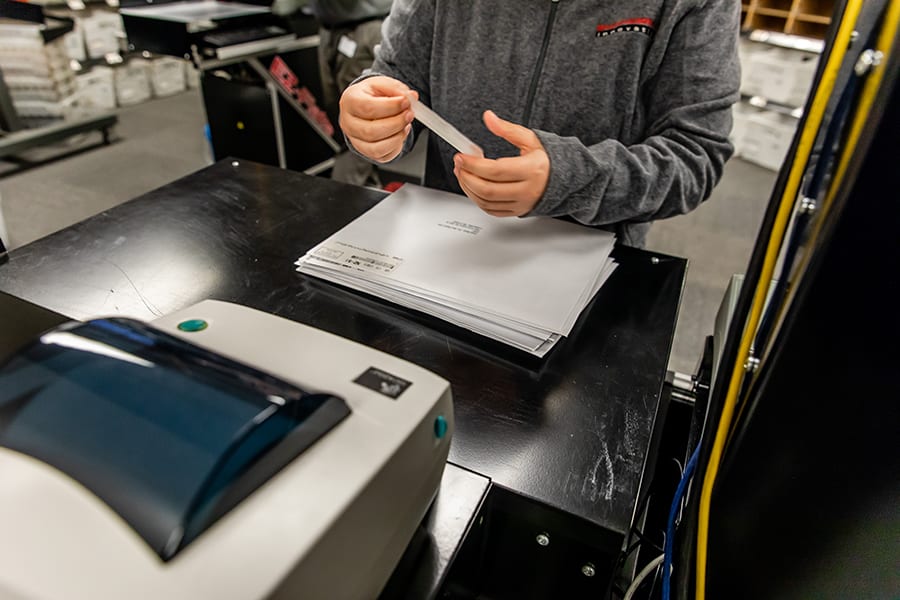

Label Application -
Manual
Printer -
Zebra
Number of Operators -
1 - 2

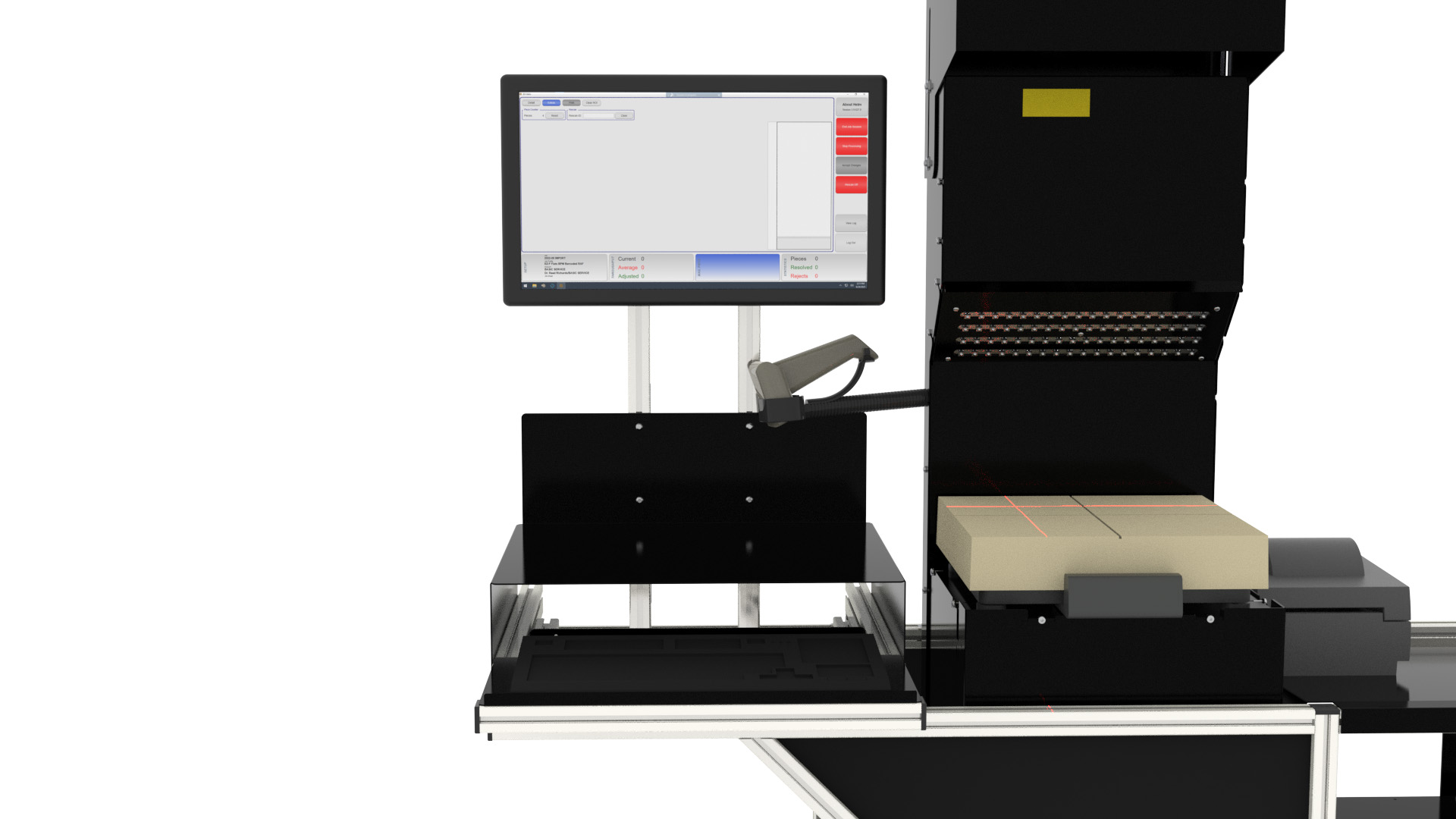

Monitor/Controller -
Touchscreen
Footprint Dimensions -
L: 70" x W: 91" x H: 66"
Power Specifications -
120V/20A IEC C-20 3 Wire, 230V/20A 3 Wire L11-20P/R, or 240A/20A L15-20P/R 4 Wire
Temperature -
41°F - 113°F (5°C - 45°C)
Humidity -
<85% (non-condensing)
Compressed Air -
No

Piece Type

Boxes
Bubble Mailer
Flats
Padded Mailer
Poly Bags

Container Options

Tubs
