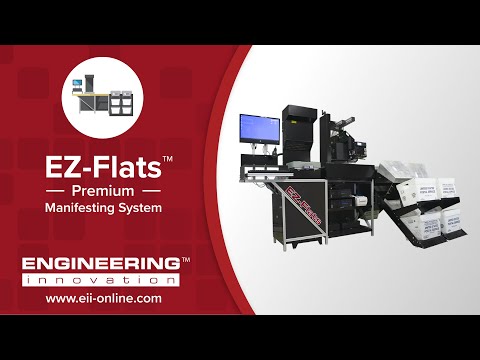

EZ-Flats® Premium Manifesting System

Earn the maximum discounts on presorted First Class Flats
EZ-Flats-Premium-1
Overview

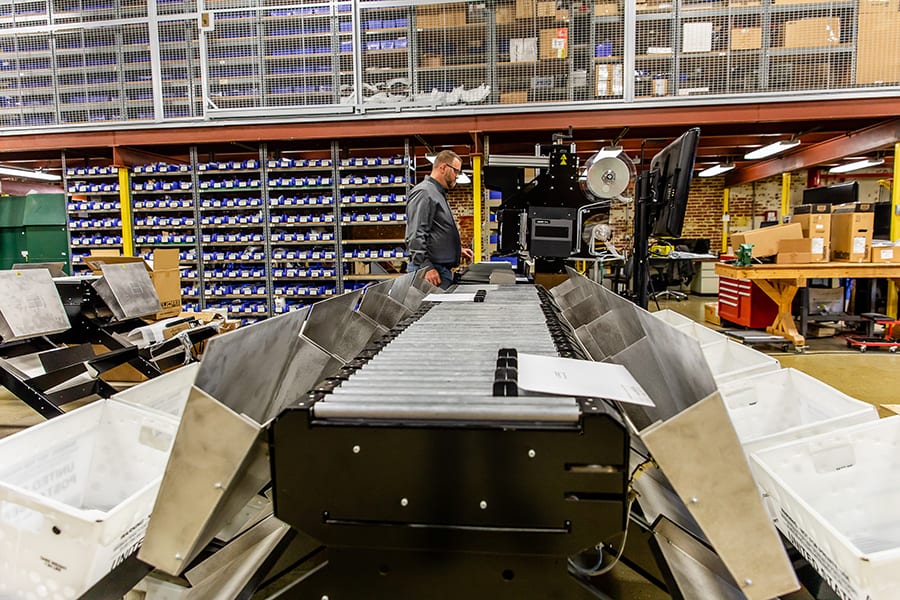

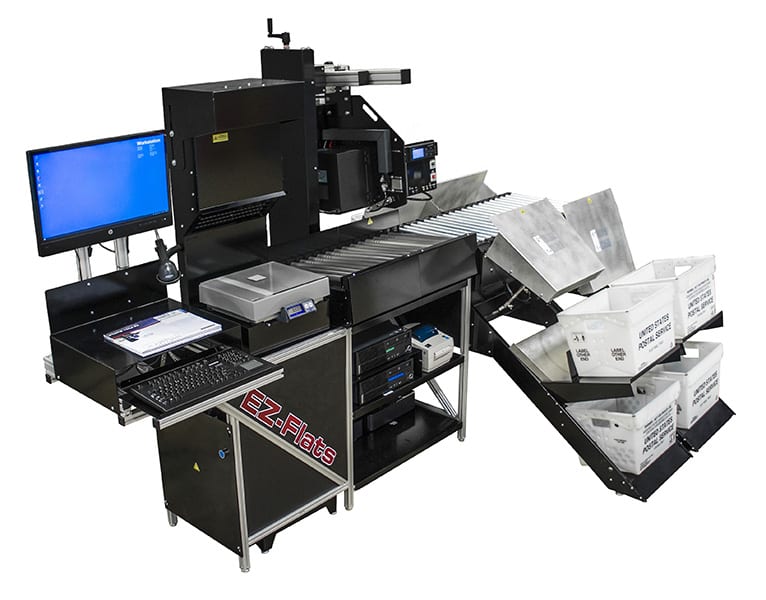

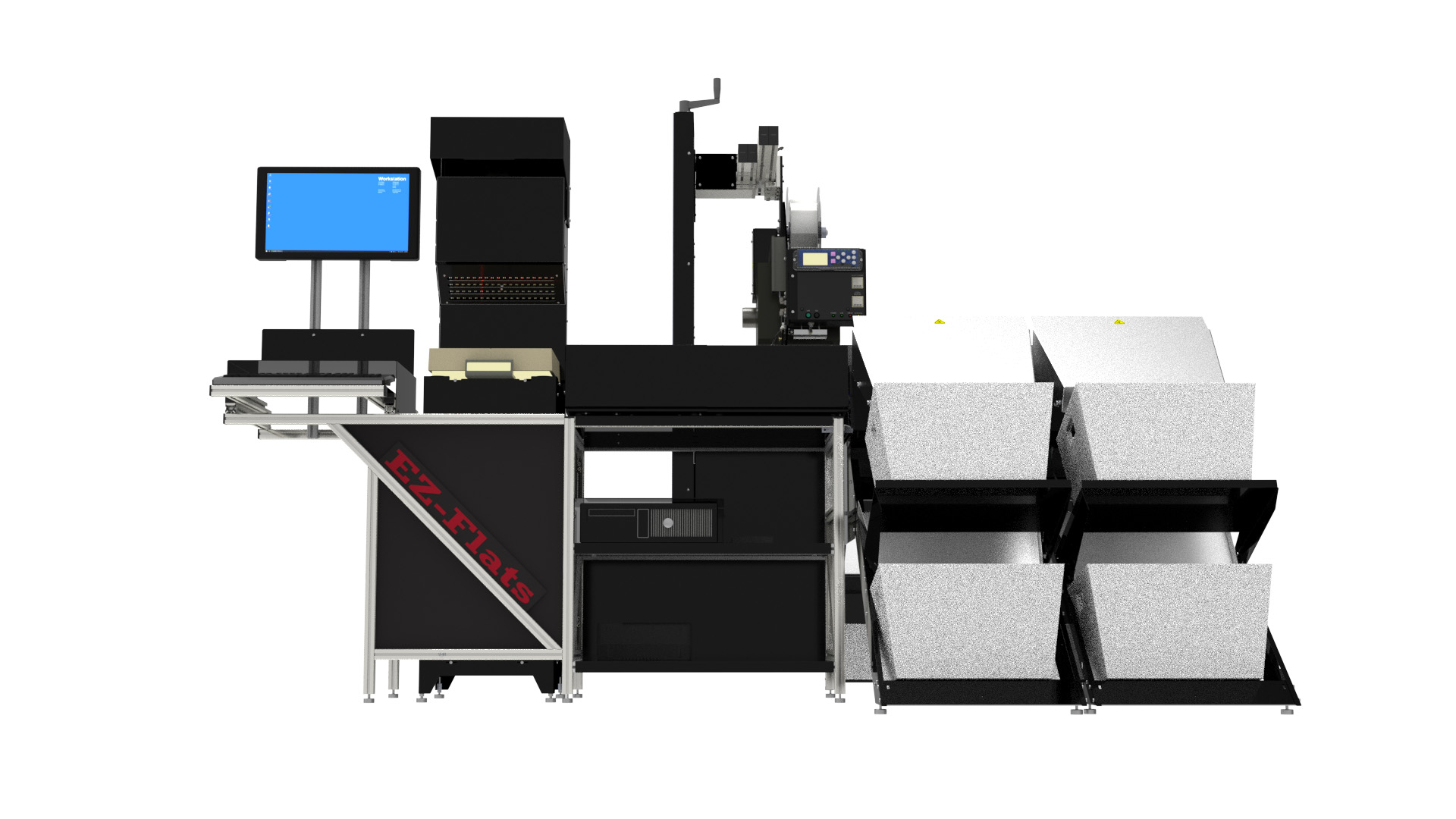

EZ-Flats® Premium is what it claims to be. It’s your premium solution which produces bundle-based First-Class mail automation, giving you maximum discounts more economically than other sorting systems. The easy operation allows for first time operators to literally and figuratively get up to speed in 15 minutes with a typical throughput of 1400 flats per hour—peak rates at 1800 to 2000—with a single operator.

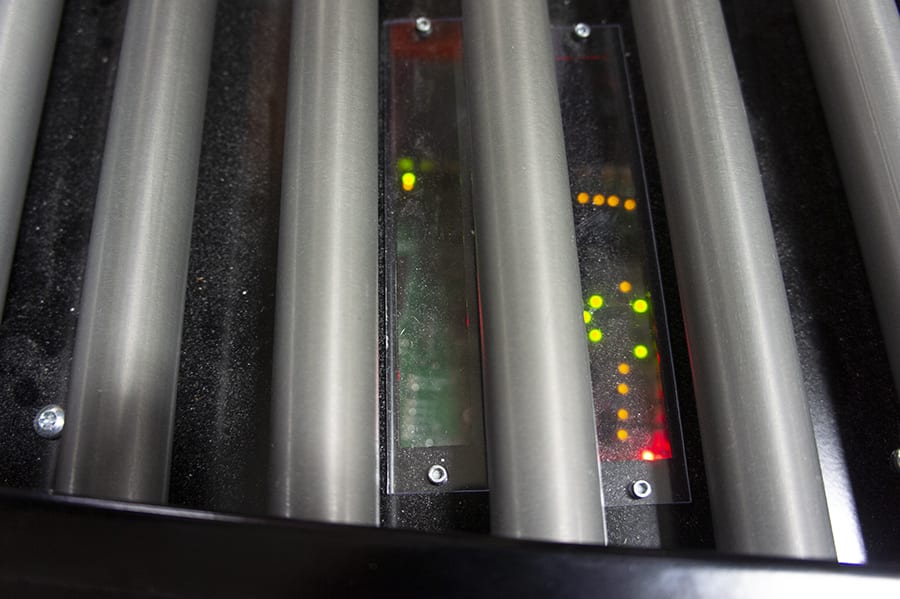

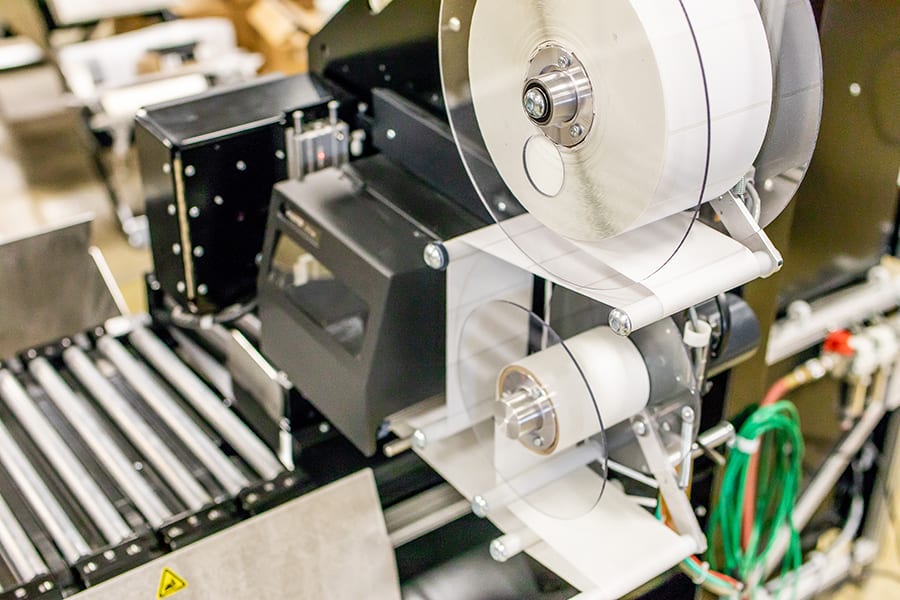

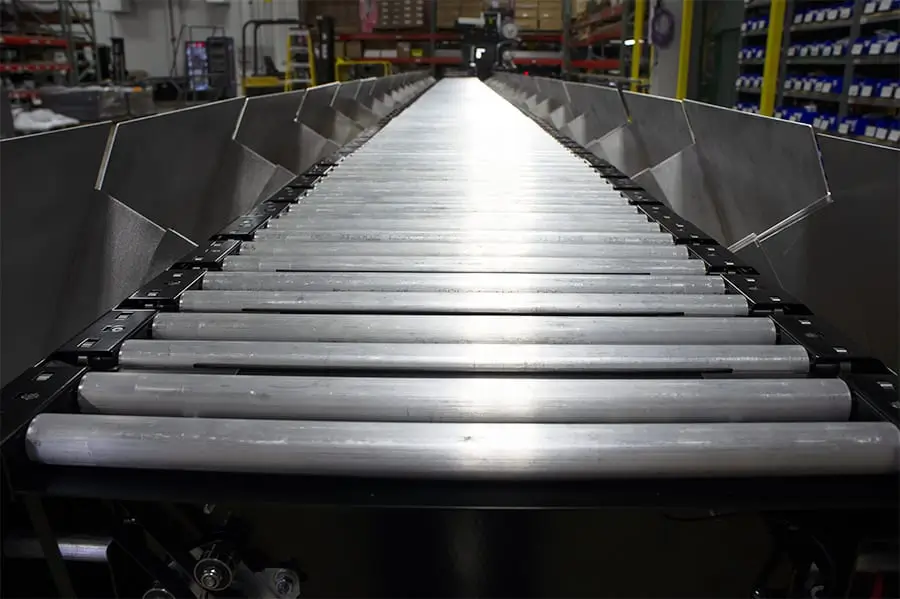

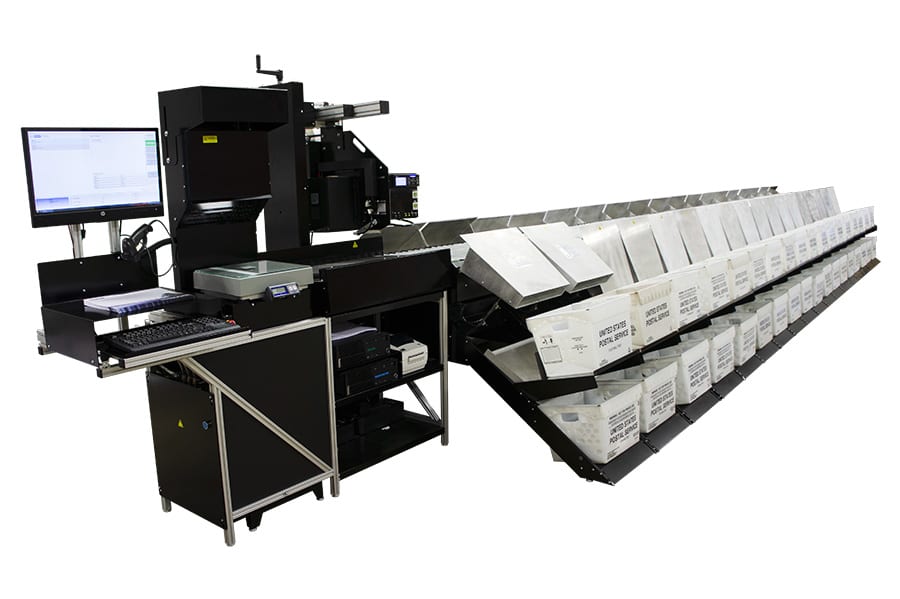

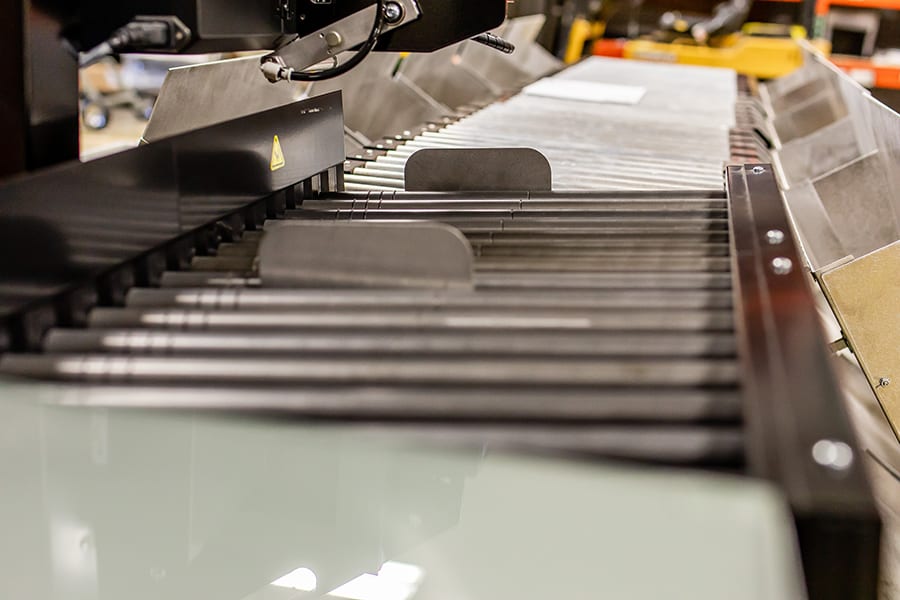

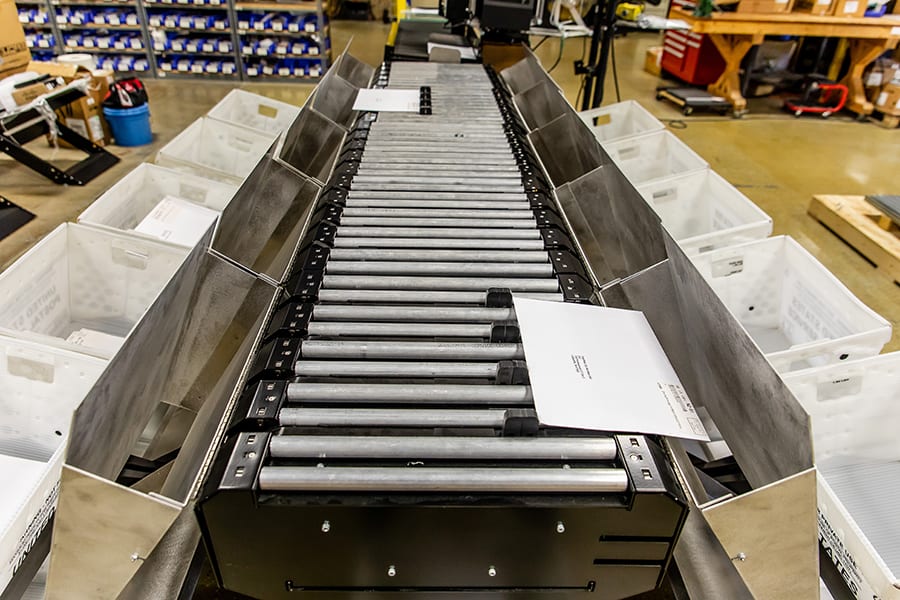

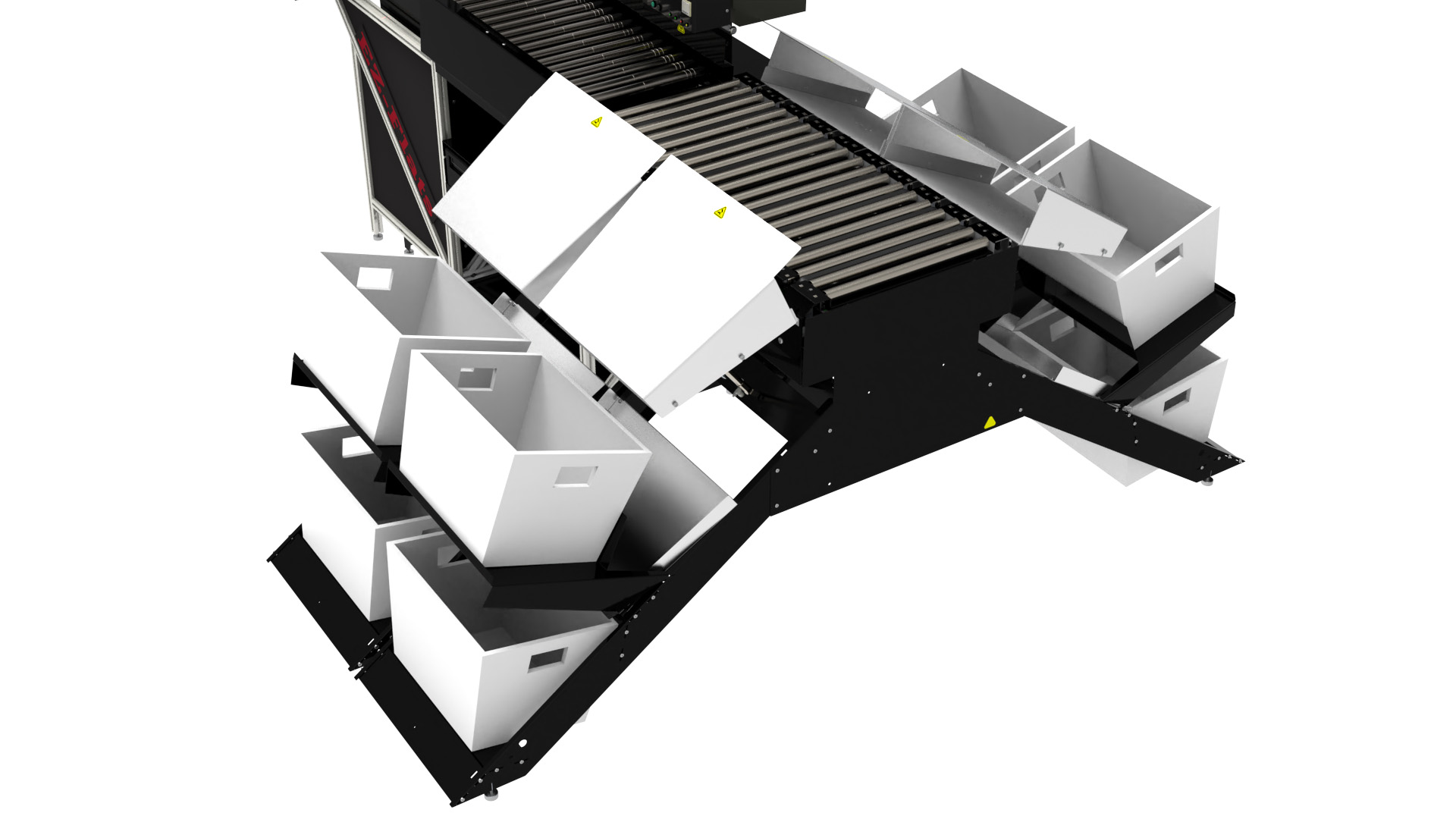

The EZ-Flats® Premium boasts a fully-automated labeling process, an automated conveyor system, patented Dynamic Sort ™ software to facilitate a more affordable, bundle-based sorting operation, and 8 automated pockets (expandable to 72).

Features

Cost Effective

Low entry cost and quick ROI.

Highest Profit Potential

Dynamically reassigns routing designations for the maximum discount.

Simplicity

System installs easily and operators are up to speed in 15 minutes.

Specifications

Throughput (pph) -
1,500 - 2,000
Piece Height (in) -
0.125 - 2
Piece Length (in) -
6 - 15
Piece Width (in) -
5 - 10
Min Weight -
0.05 lbs.
Max Weight -
10 lbs.

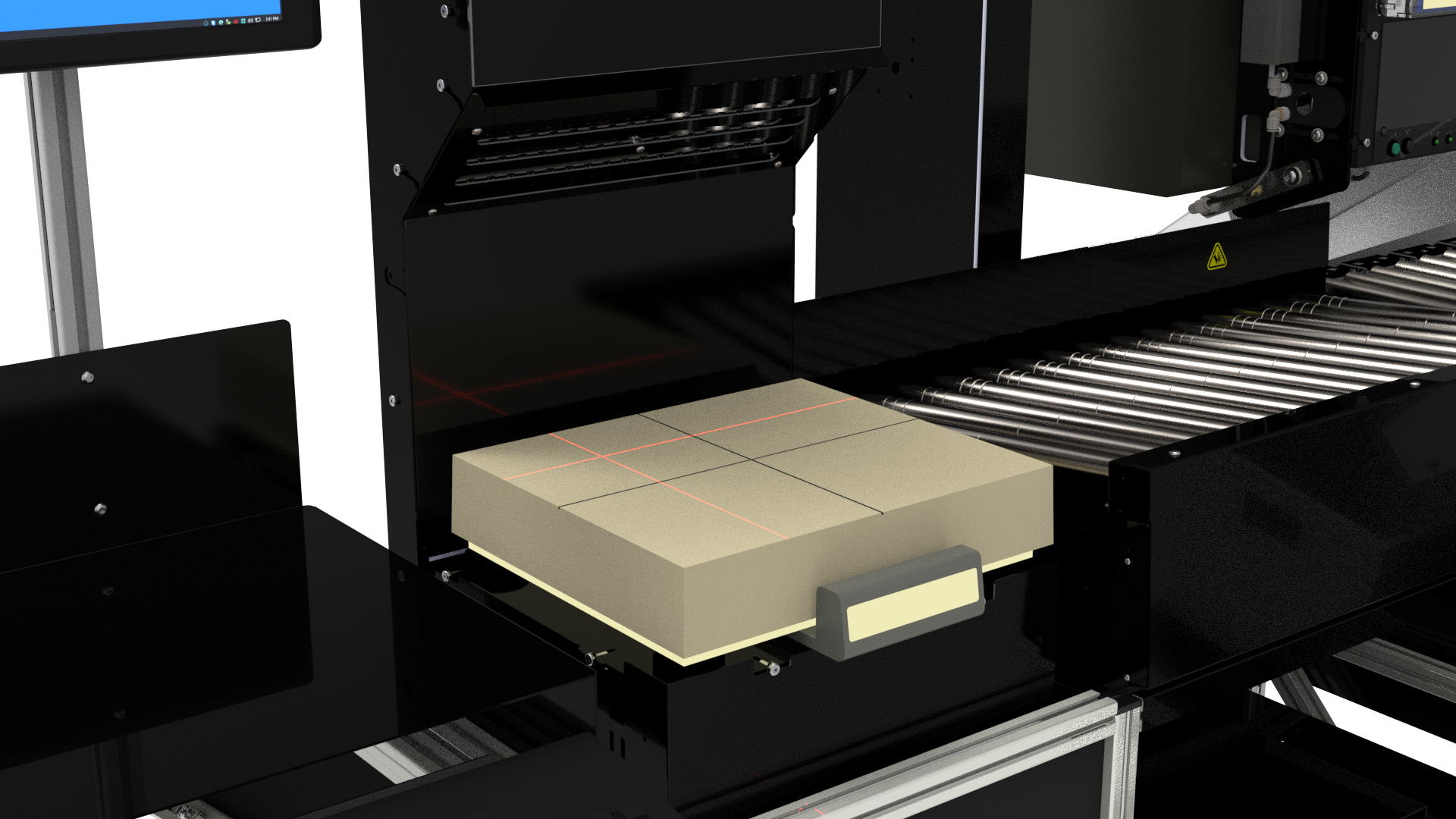

Scale -
Mettler Toledo BC-30
Barcode -
1D and 2D
Scanner -
Symbol LS2208 1D Scanner
OCR -
Yes
Label Size (in) -
4 x 1.5

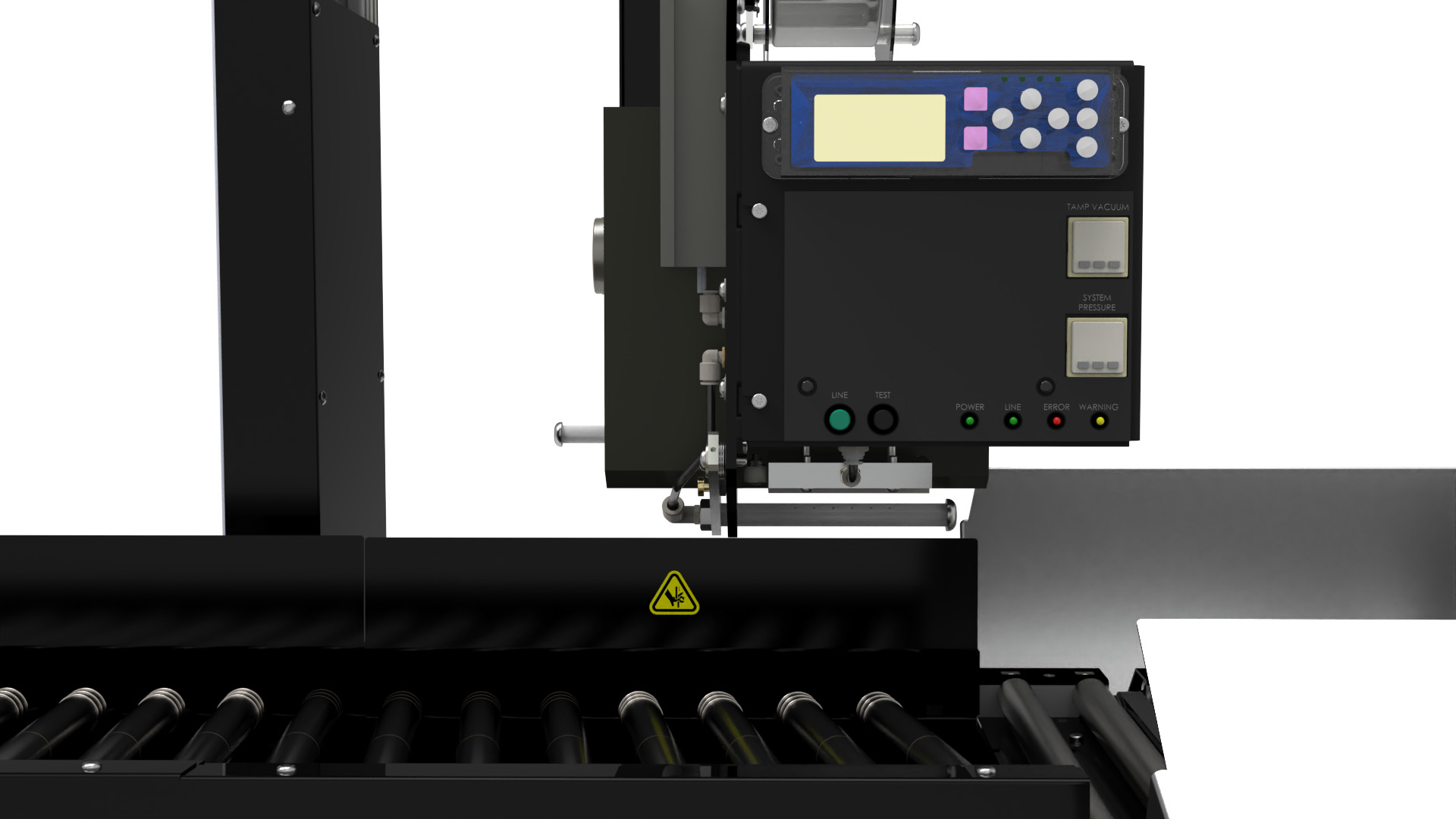

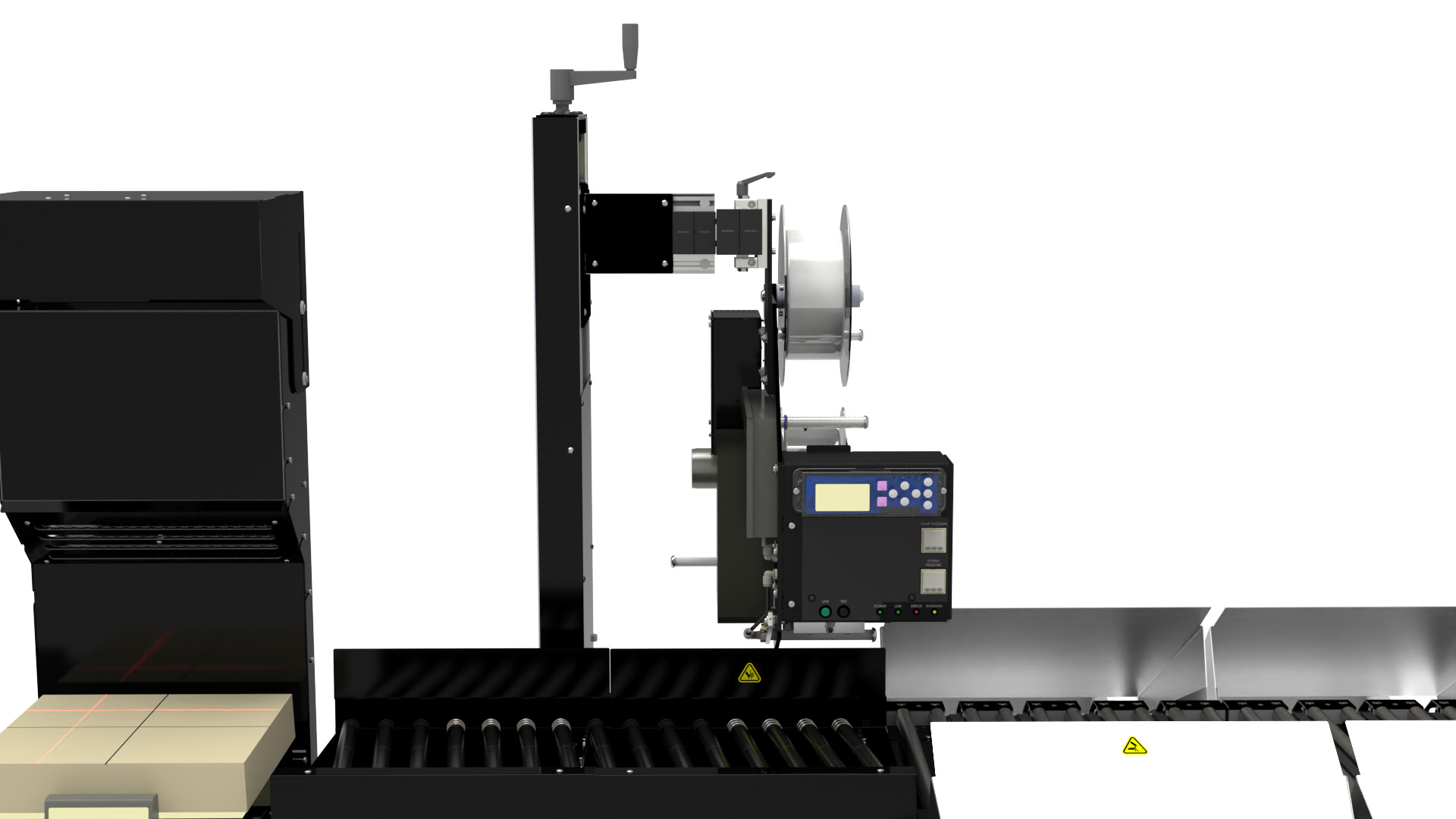

Label Application -
Automated

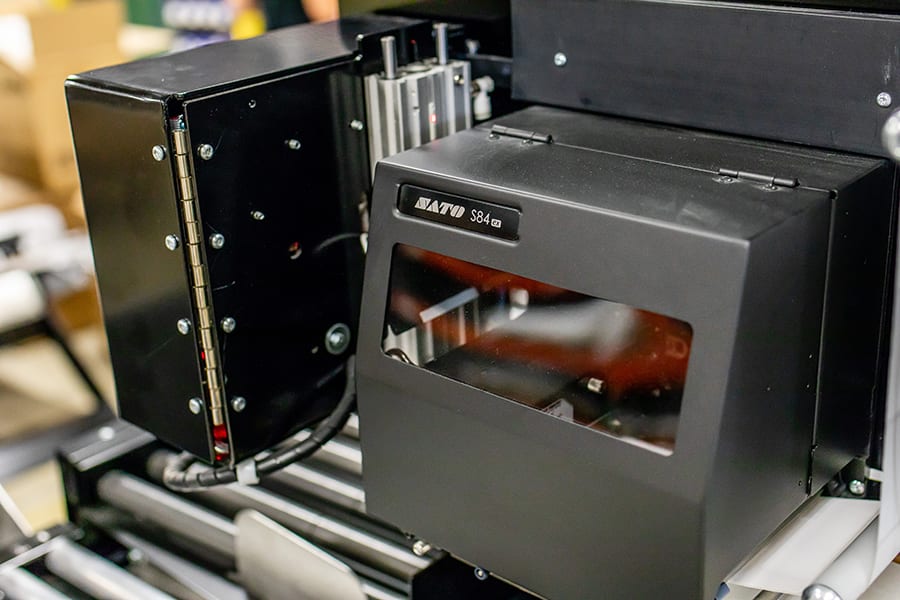

Printer -
Zebra and EII's Printer
Number of Sorting Containers -
Adjustable
Number of Operators -
1 - 2

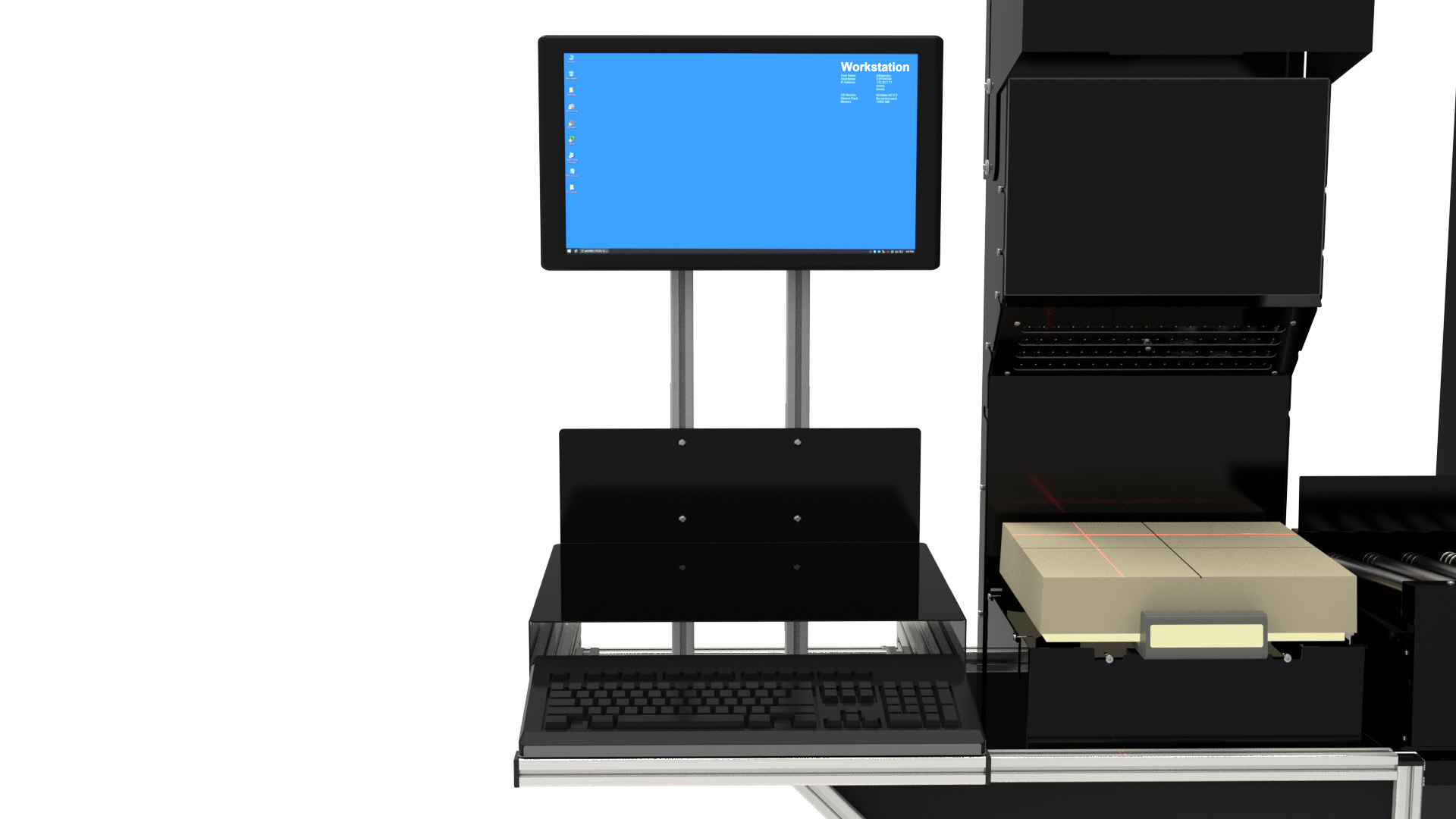

Monitor/Controller -

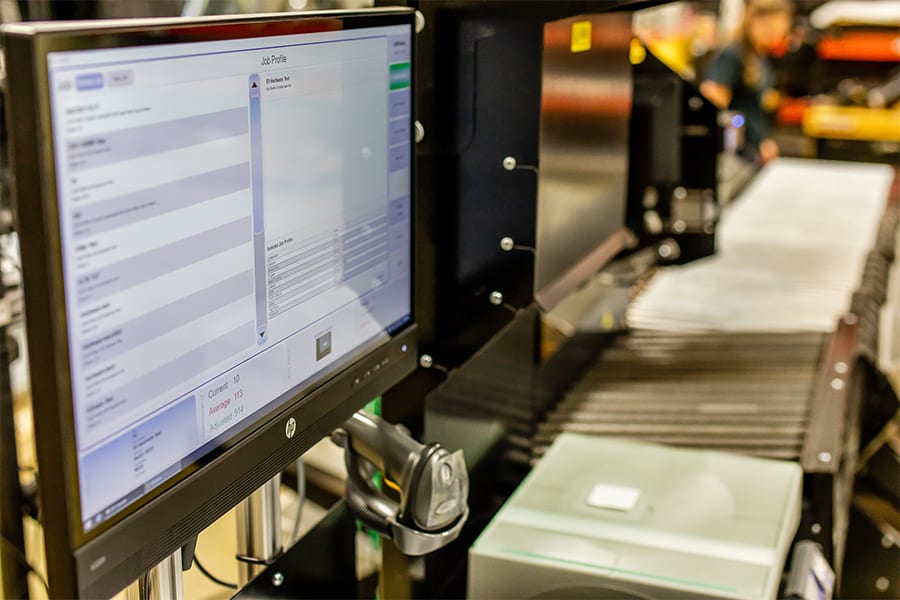

Touchscreen
Footprint Dimensions -
L: (70"+ (the amount of stackers x 20")) x W: 91" x H: 77"
Power Specifications -
120V/20A IEC C-20 3 Wire, 230V/20A 3 Wire L11-20P/R, or 240A/20A L15-20P/R 4 Wire
Temperature -
41°F - 113°F (5°C - 45°C)
Humidity -
<85% (non-condensing)
Compressed Air -
Yes

Piece Type

Boxes
Bubble Mailer
Flats
Poly Bags
Padded Mailer

Container Options

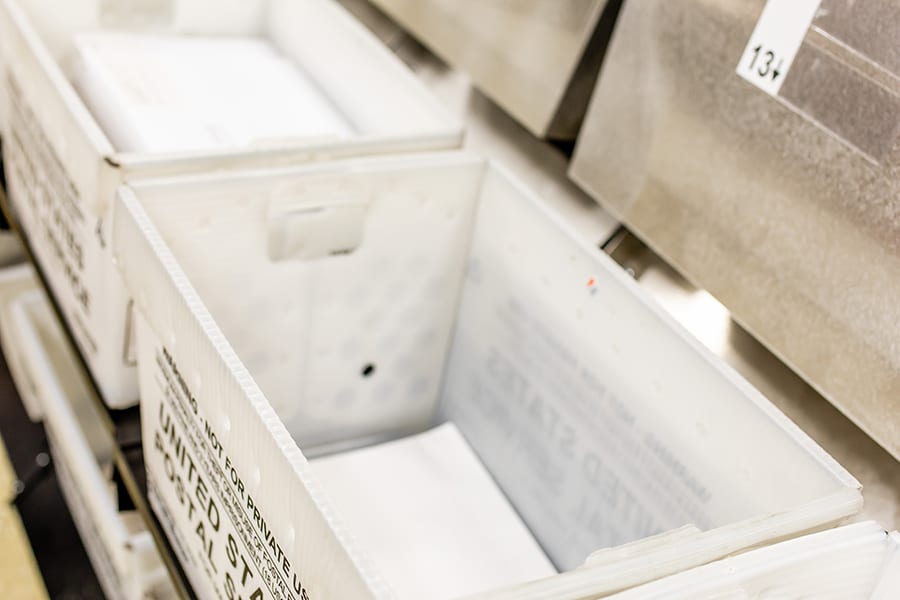

Tubs
